Security door TR 611 Torterolo & RE

The structure of the Leaf

• Double sheet electrogalvanized steel, thickness 10/10, reinforced with vertical interior.
•  Thermal and acoustic insulation made with flame-retardant materials throughout the interior volume of the door.
•  The sash is equipped with 2 strong adjustable hinges in height and 5 fixed bolts.
•  Protection plate of the lock.
•  Registry deadbolt with micrometric adjustment-plate anti-manipulation.
• Edges fermapannello the outside in laminated sheet color testa di moro. (optional brushed stainless steel or lacquered).
•  Soft rubber gasket in the crease of the inner panel to the air-tightness, dust, and noise.

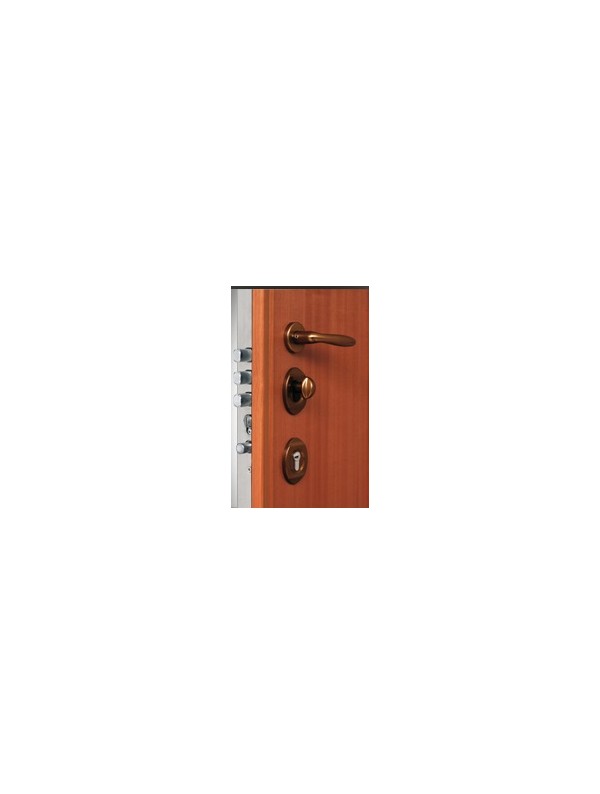

•  Door handles inner and outer, available in various sizes and colours.
•  Limiter of opening.
•  Threshold mobile weather strip for the air-tightness between the door and the floor.
• The sight is panoramic.


The frame and sub-frame

The frame and sub-frame bent and welded steel sheet, 2 mm thick, painted with paints, polyester for outdoor colour dark brown head and are adjustable in height and depth. The frame and sub-frame are available in different to fit the different architectural structures in new construction, both in renovation projects.

Safety lock with european-profile cylinder patented tear-proof, lock the secondary cylinder.

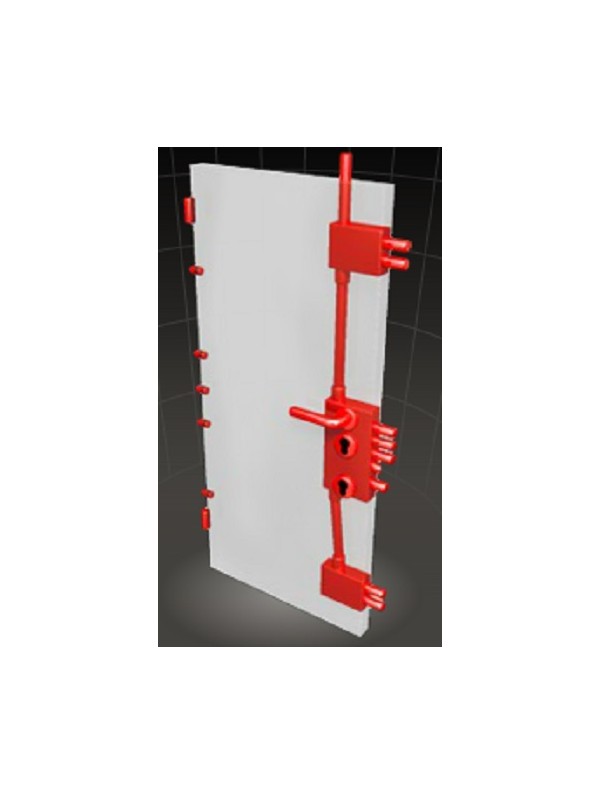

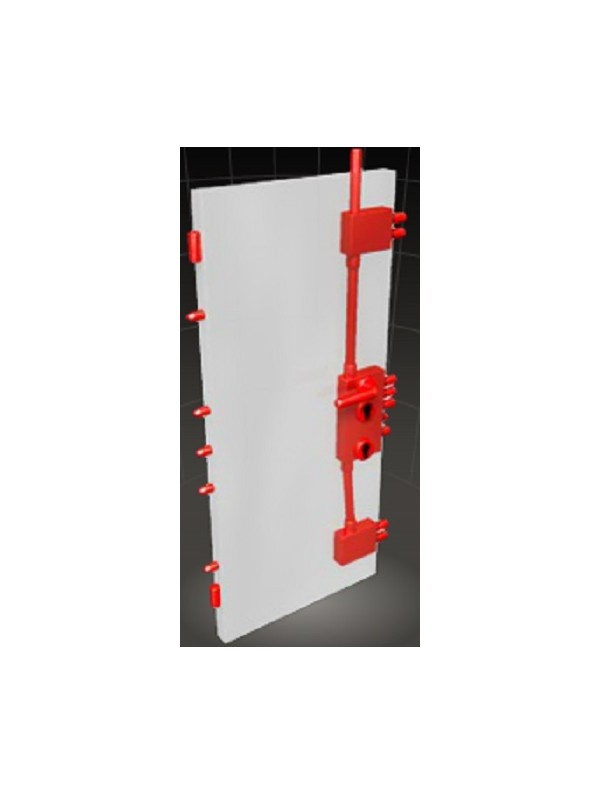

The key the main mechanism actuates the 3 bolts, the central, the latch, 2 double deviators side and 1 stud on the ceiling; the special bolts, shaped, larger section increases the resistance to break-in attempts. The cylinder - of-the-range Torterolo & Re - is equipped with a protection device cylinder anti-drill and anti-extraction. The special device tear-proof, patent Torterolo & Re, locks the system in the case of extracting a forced cylinder. This security lock is very functional even in case of loss of keys, because it allows the replacement of only one cylinder, instead of the entire lock. The key to the lock, secondary, very useful when you want to restrict access of any employee or employees, operate the half-turn, the latch closure and also blocks the lock's main. On request, the standard cylinder of the lock, the secondary can be replaced by a security cylinder european profile with device security cylinder anti-drill and anti-extraction; it is also possible to burn both cylinders, so that a single master key actions both mechanisms, and the key to service only one. The lock can be equipped with a practical means cylinder to use the provisional in yard.

Euro profile cylinders:

Coatings

Your door can be customized and made unique thanks to the wide range of coverings offered by Torterolo & Re: smooth or machined, pantographed, in solid wood or in aluminum, in wood or lacquered, offer endless possibilities to better adapt to the style of the interior and exterior of your home.

Variants the most common.
It is possible to realize the doors of the Gold series :

• with upper blind or glazed, rectangular or arched.
• breaking of glass of different shapes and sizes.
• with feedback electric to open the deadbolt at a distance.
• arch or low arch.
• with a sense of opening reversed (from the inside towards the outside).
• included in the armoured front doors with fixed side windows.

Available in standard or customized sizes to one or two doors.
