The structure of the Leaf

• Double sheet electrogalvanized steel with vertical reinforcements and internal insulation.
• The sash is equipped with 2 strong adjustable hinges in height and 5 fixed bolts.
• Protection plate of the lock.
• Edges fermapannello the outside in laminated sheet color testa di moro.
• Soft rubber gasket in the crease of the inner panel to the air-tightness, dust, and noise.
• Door handles inner and outer, available in various sizes and colours.
• Limiter of opening.
• Threshold mobile weather strip for the air-tightness between the door and the floor.
• The sight is panoramic.

The frame and sub-frame

The frame and sub-frame bent and welded steel sheet, 2 mm thick, coated with varnish polyester for outdoor colour dark brown head and are adjustable in height and depth.

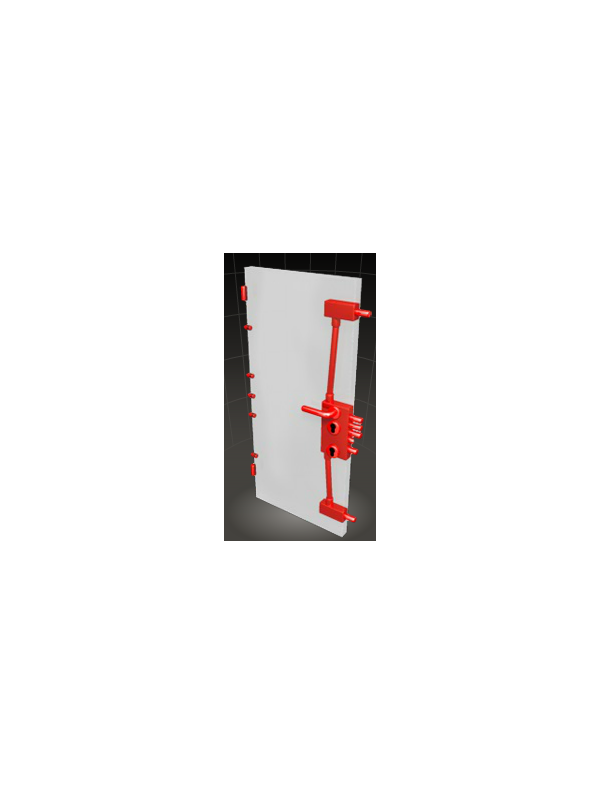

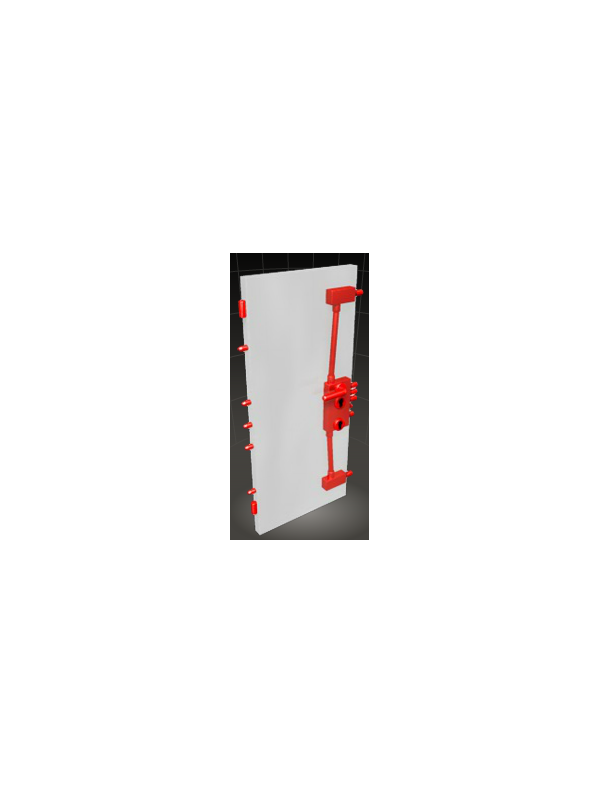

Safety lock with european-profile cylinder and device tear-proof; lock with cylinder.

Security lock, prepared for cylinder in the range of Torterolo & Re, may be provided with a practical means of cylinder-to-use, in the interim, the site; in the case of lost keys, this locking system requires the replacement of only one cylinder.

The key operates the 3 bolts, the central, the latch and 2 switches side latch. The special device strain relief locks the system in the case of extracting a forced cylinder. The lock service with the cylinder actuates the latch bolt and a latch closure, allowing the landlord to restrict access to any co-workers. Security high thanks to the protection device cylinder anti-drill and anti-extraction.

Euro profile cylinders:

Anti-burglar
Class 3
according to the standard ENV 1627*


Noise Reduction
Rw 33 dB*


Thermal Transmittance
U = 1.4 W/m²K
